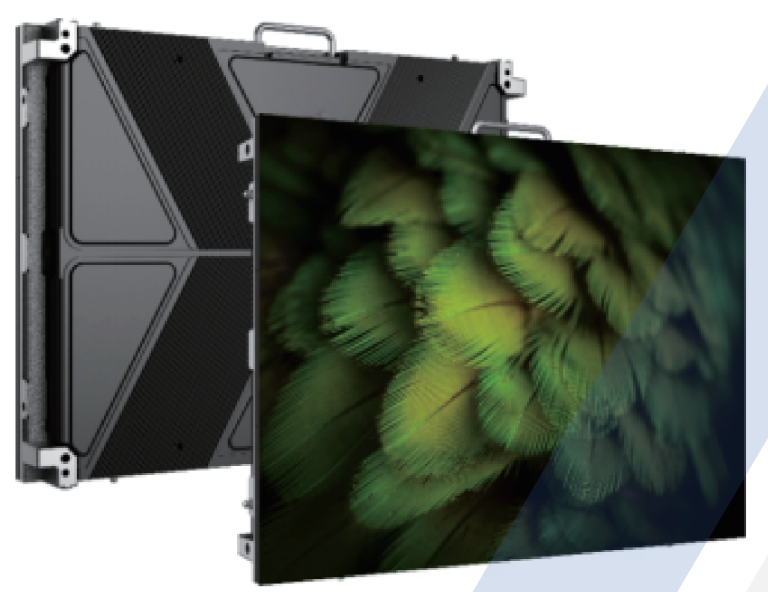

LL-COB Leader Series

Product features:

  • Our COB display is perfect for meetingrooms, conference halls, home theatersmalls, and lounges delivering high-qualityvisuals in any setting.
  • Multiple Protection Layers: Worry Free regarding easy damage.
  • Cabinet size:640mm*480mm
  • Pixel: 1.2/1.5/1.8/2.5

Fully Flip Chip on Board it is:

  • Moisture-proof
  • Anti StaticA
  • Dust proof
  • Anti collision

Parameters of 1.5 Indoor Screen​​

Parameter

Value

​​Pixel Pitch​​

1.5mm

​​LED Type​​

Fully flip chip COB

​​Brightness​​

600 – 900 nits

​​Module Size​​

320x160mm

​​Panel Weight​​

0.5kg/panel

​​Pixel Density​​

422,753 pixels/m²

​​Pixels Per Panel​​

426×320 pixels

​​Ingress Protection​​

Front: IP54

​​Environment​​

Indoor

​​Calibration​​

Support brightness and chroma

​​Brightness Control​​

Manual/Automatic

​​Color Temperature​​

1,000K~9,500K Adjustable

​​Horizontal Viewing Angle​​

160°

​​Vertical Viewing Angle​​

160°

​​Contrast Ratio​​

10000:1

​​Input Power <Typical>​​

150W / six modules

​​Input Voltage​​

AC90-132V/AC186-264V

​​Processing Depth​​

13bit

​​Refresh Rate​​

3840Hz

​​Video Frame Rate​​

50&60Hz

​​Input Power Frequency​​

50-60Hz

​​LED Life Time​​

100,000 Hours

​​Operating Temperature/Humidity​​

-10°C-45°C

​​Storage Temperature/Humidity​​

-20°C-55°C
